Application
The HP9560 Series high pressure brass valves are used on cylinder filling panels, tube trailers, and other high pressure manifolds and piping systems. The HP9560 Series exhibits a very low operating torque under pressure for ease of manual operation.
Features
• 5600 PSI (386 Bar) maximum working pressure
• Non-rising stem design with O-Ring Seal for durable service.
• Large brass handwheel for easy low torque operation under pressure.
• All valves cleaned for use in oxygen per CGA G-4.1.
• Temperature range -40°F to +165°F.
• 100% Factory Tested
Materials
Body, bonnet, stem, and seat retainer, stem seal retaining rings and washer: Brass
Stem O-ring: Viton
Handwheel Washer: PCTFE
Soft Seat Option
The soft seat valves use a CTFE seat disc in the seat retainer to create a “bubble-tight” seal against a machined seat surface on the brass body. Valve Cv is 2.6. The soft seat option is especially useful for small molecule gases like hydrogen and helium, but can be used for a variety of non-corrosive industrial gases including oxygen, argon, nitrogen, carbon dioxide, nitrous oxide, and acetylene.

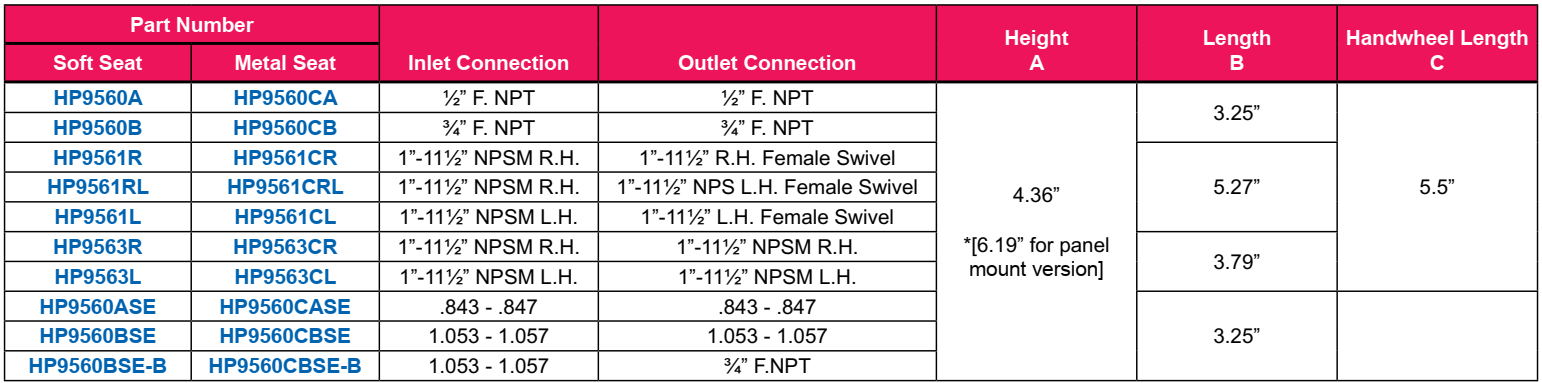

.png)
The HP9560 Series high pressure brass valves are used on cylinder filling panels, tube trailers, and other high pressure manifolds and piping systems. The HP9560 Series exhibits a very low operating torque under pressure for ease of manual operation.
Features
• 5600 PSI (386 Bar) maximum working pressure
• Non-rising stem design with O-Ring Seal for durable service.
• Large brass handwheel for easy low torque operation under pressure.
• All valves cleaned for use in oxygen per CGA G-4.1.
• Temperature range -40°F to +165°F.
• 100% Factory Tested
Materials
Body, bonnet, stem, and seat retainer, stem seal retaining rings and washer: Brass
Stem O-ring: Viton
Handwheel Washer: PCTFE
Soft Seat Option
The soft seat valves use a CTFE seat disc in the seat retainer to create a “bubble-tight” seal against a machined seat surface on the brass body. Valve Cv is 2.6. The soft seat option is especially useful for small molecule gases like hydrogen and helium, but can be used for a variety of non-corrosive industrial gases including oxygen, argon, nitrogen, carbon dioxide, nitrous oxide, and acetylene.
